Myrtle Ridge Floor Plan

$1,695$2,395

About the Myrtle Ridge Floor Plan:

  • The Myrtle Ridge is a delightful 4 bedroom home full of charm. It keeps the flagship Kitchen, Dining, Living and Stair Hall configuration we love from the Century Oak, but it has a charming asymmetrical front elevation.
  • The Front Porch is gracious and welcoming and has plenty of space for outdoor living.

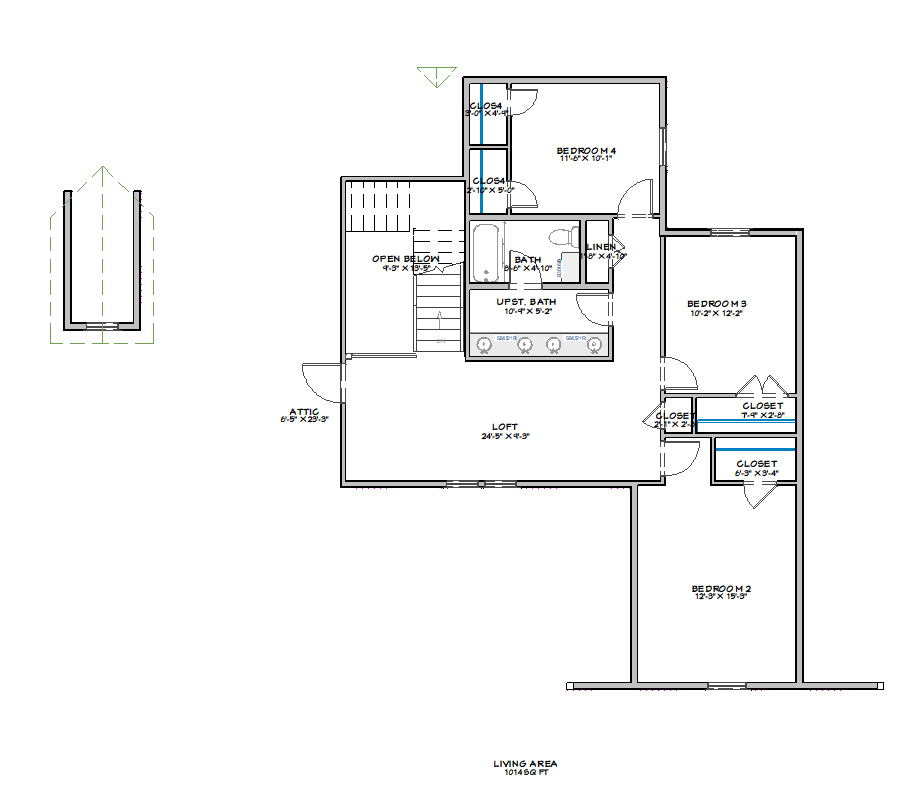

  • The Primary Bedroom is on the first floor, and there are 3 bedrooms and 2 baths upstairs, along with a loft for a playroom, library, or lounging area.

click image to enlarge

click image to enlarge



What is included in these plans…and other FAQs



Printable flier



VARIATIONS:

3 Bedroom variation (alternate upstairs)

3 bedroom variation is 186 SF smaller



PLAN DETAILS

SQUARE FOOTAGE

Total Heated Area: 2969 SF

1st floor: 1955 SF

2nd floor: 1014 SF



FOUNDATION

slab

other types available as a modification



CEILING HEIGHTS

1st floor: 10′-0″

2nd floor: 9′-0″



ROOF DETAILS

primary pitch: 10/12

secondary pitch 4/12

front porch 3/12



WALL FRAMING

2×6 exterior, 2×4 interior, stick framed





All orders fulfilled Monday-Friday.  A complete set of working drawings delivered in a digital format. Typical delivery timeline is 1-2 business days but orders with options may result in a delay.

IMPORTANT NOTE: If your order includes modifications, this delivery timeline is not applicable.



MODIFICATIONS: Considering Modifications? READ THIS, please.
Select this option to let us know that you'd like us to make modifications to this plan for you. Please see note/link above about MODIFICATIONS. This is a deposit that will be deducted from your final modifications invoice.
Materials Lists should be used as a guide only, it is the full responsibility of the homeowner/contractor to verify all quantities for their individual project. Go to www.oldbarncompany.com/material-lists for more info about Material Lists.
Product total
Options total
Grand total

Description

All plans are copyrighted by Old Barn Design. Photographed homes may include modifications.

Terms of Purchase

Building Code

Due to the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, a design professional or licensed engineer can assist in bringing the plans up to your local building code.

Engineering

All foundations should be designed by a local Structural Engineer for the specific local and site conditions.



By purchasing this plan you acknowledge that you understand and agree to the following:

  • I have confirmed that the plan will work on my site, taking setbacks, easements or any other building restrictions into consideration.
  • I understand that I may only use this Construction Set in accordance with the license agreement I choose.
  • I understand this Construction Set is protected by copyright. The use of these plans and specifications is restricted to the original site for which they were prepared.  Re-use, reproduction or publication by any method in whole or in part is prohibited, unless authorized by Jessica Starr, and infringement is punishable up to $250,000 plus attorney fees, damages, and loss of profits.  Ownership of the design, plans and specifications is solely with Jessica Starr. Plans may not be shown in whole or part on the internet by anyone other than Jessica Starr and Old Barn Design.
  • I understand that this plan cannot be built within 60 miles of Granbury, TX.

Additional information

Plan Set Options

PDF – Single Build, PDF – Unlimited Build, CAD + PDF Single Build, CAD + PDF Unlimited Build
