White Oak Floor Plan

$1,695$2,395

About the White Oak Floor Plan

Everything we all love about Century Oak (including the stairs!) in a smaller package!

  • This take-your-breath-away 4-bedroom brilliant floor plan feels like it was designed for the way you live!
  • Don’t you love the front porch? So welcoming!
  • This beautiful design has a vaulted Living Room open to the Dining Room and Kitchen. Even though the spaces are open to each other, they each feel distinct.
  • The kitchen will undoubtedly become the setting for many family memories. Look at the huge island perfect for eating, homework, conversations over charcuterie, or projects…. And let’s not forget that walk-in pantry!
  • Access from the Garage into the Mudroom and Laundry Room to give your family a place to drop off all their items, instead of spreading them all over the house.

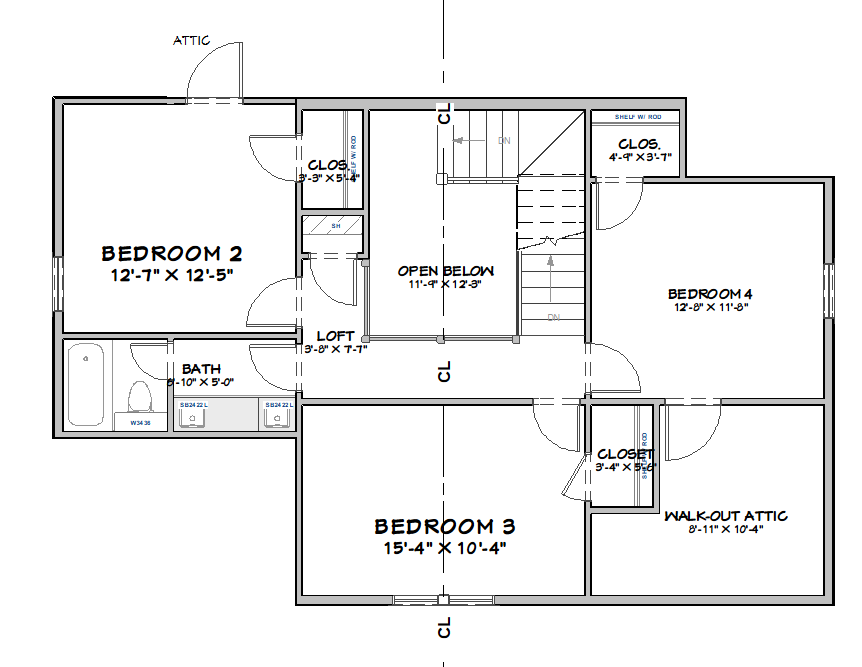

  • A second upstairs bath can be added in the Walk-out Attic area.

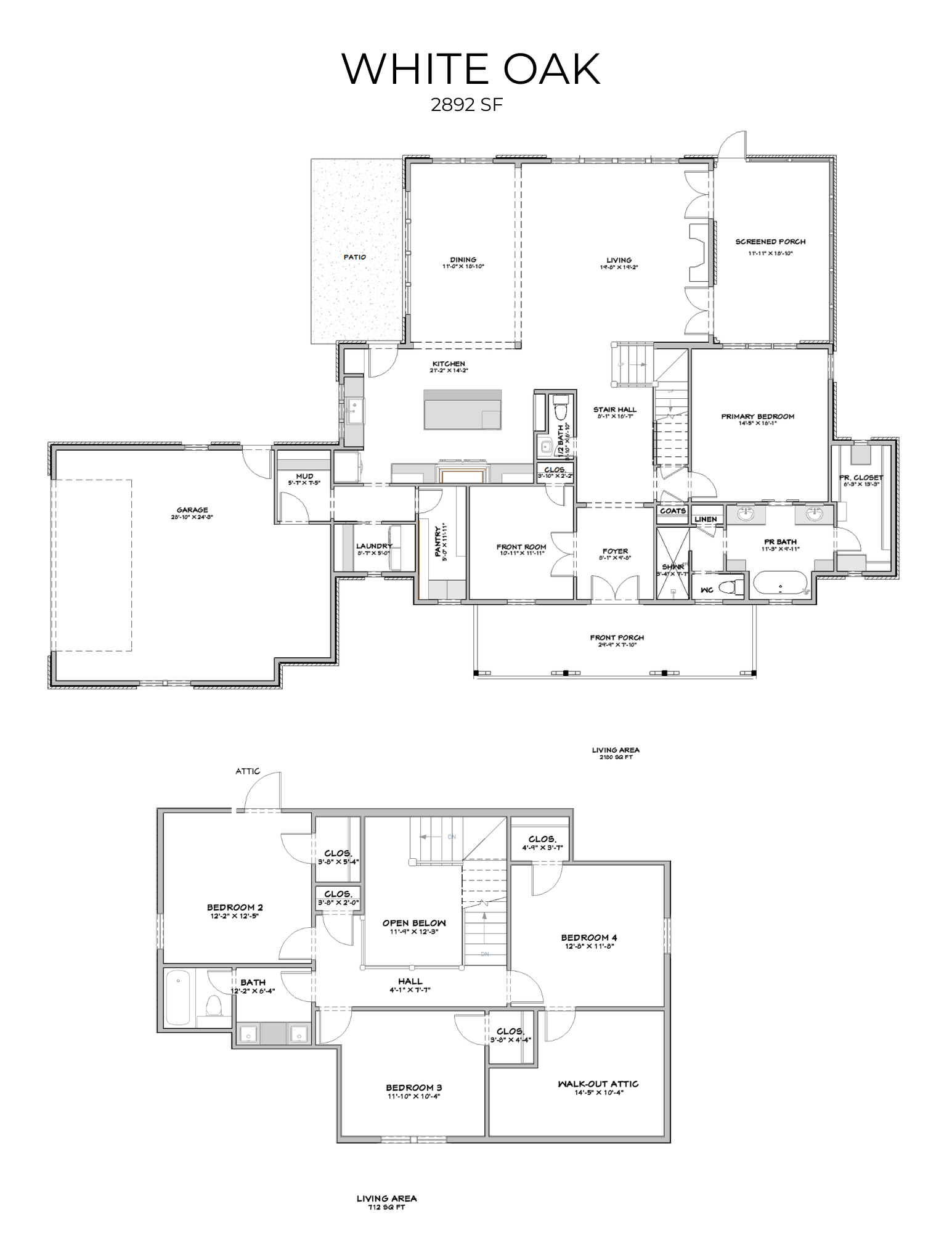

click image to enlarge



What is included in these plans…and other FAQs

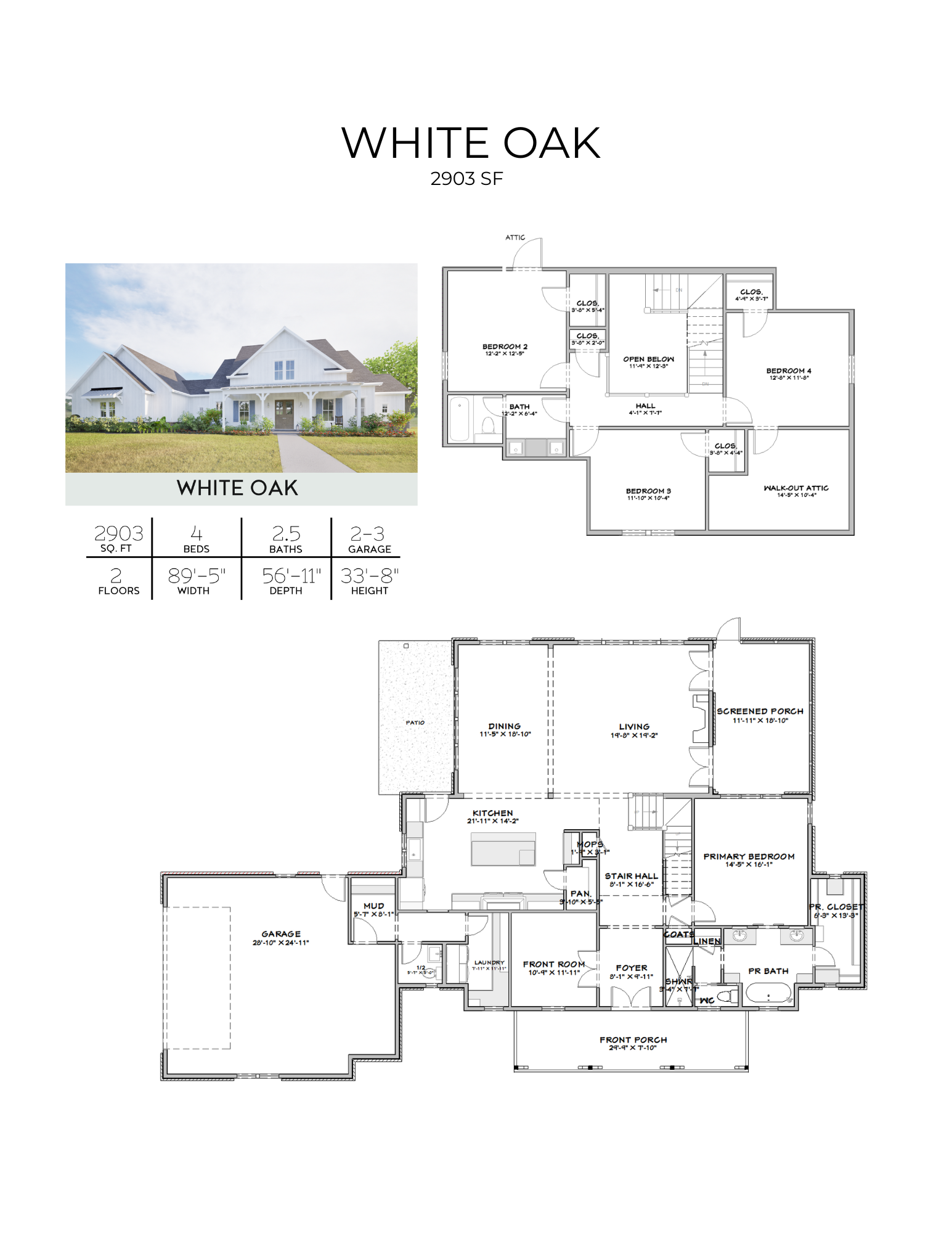

Printable flier

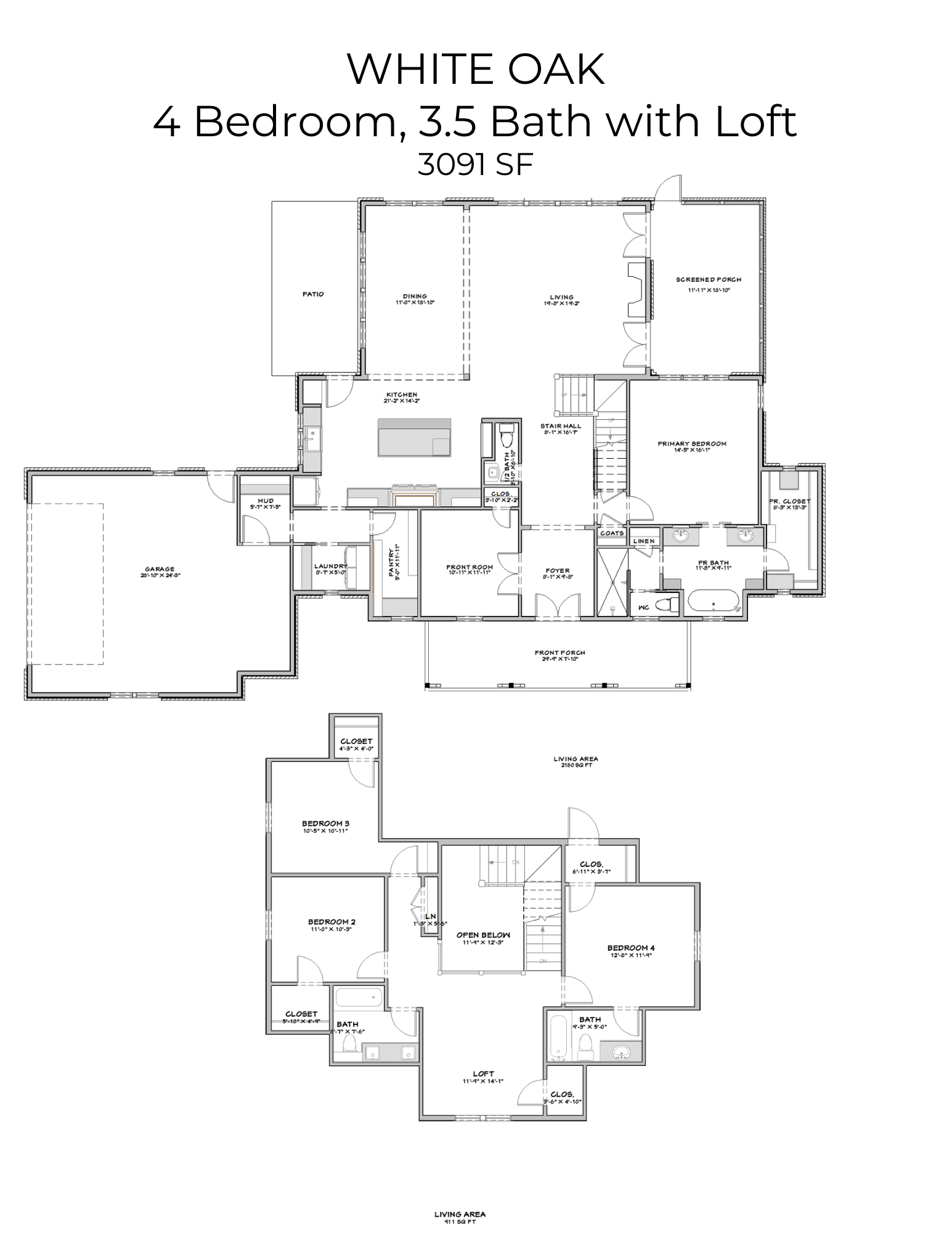

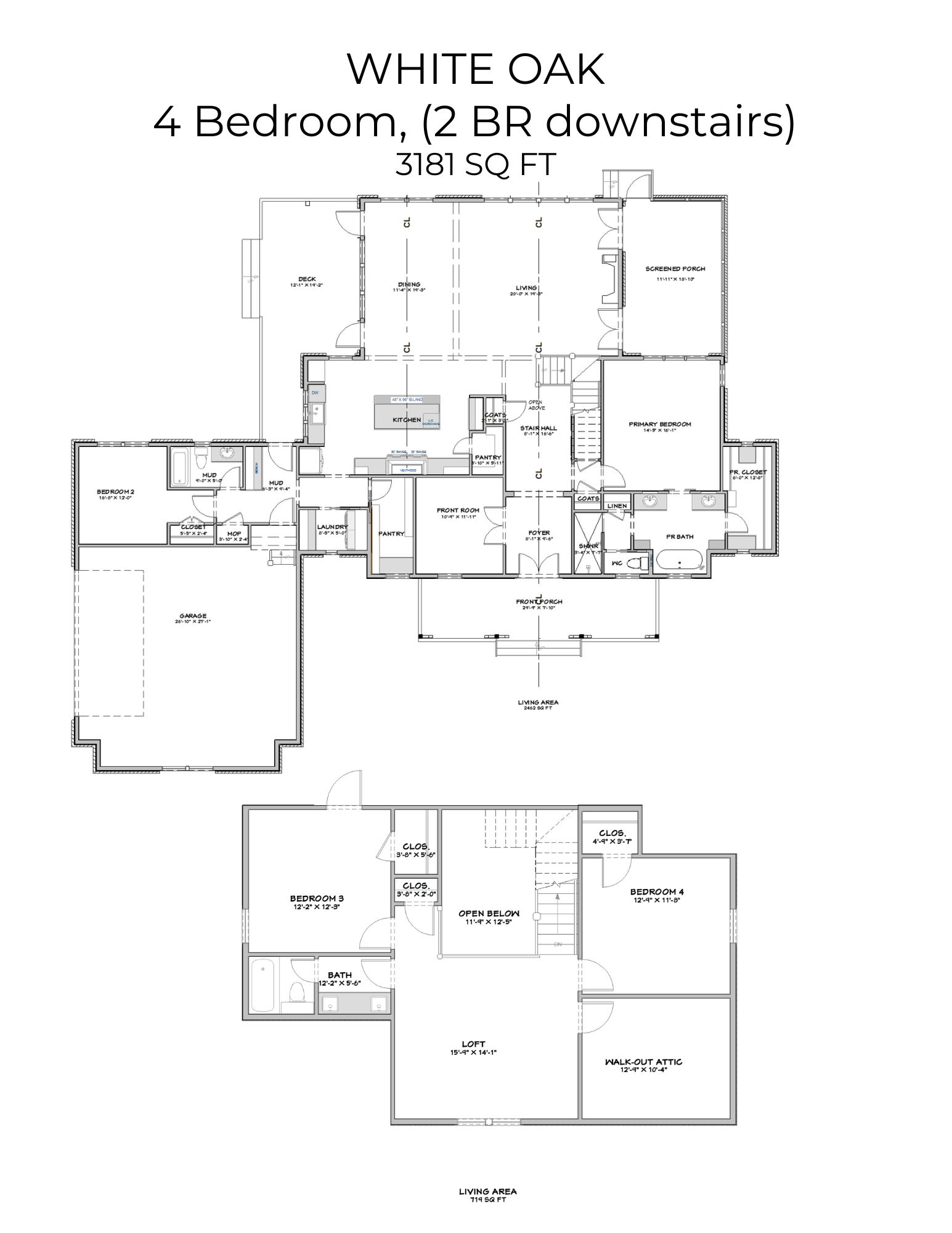

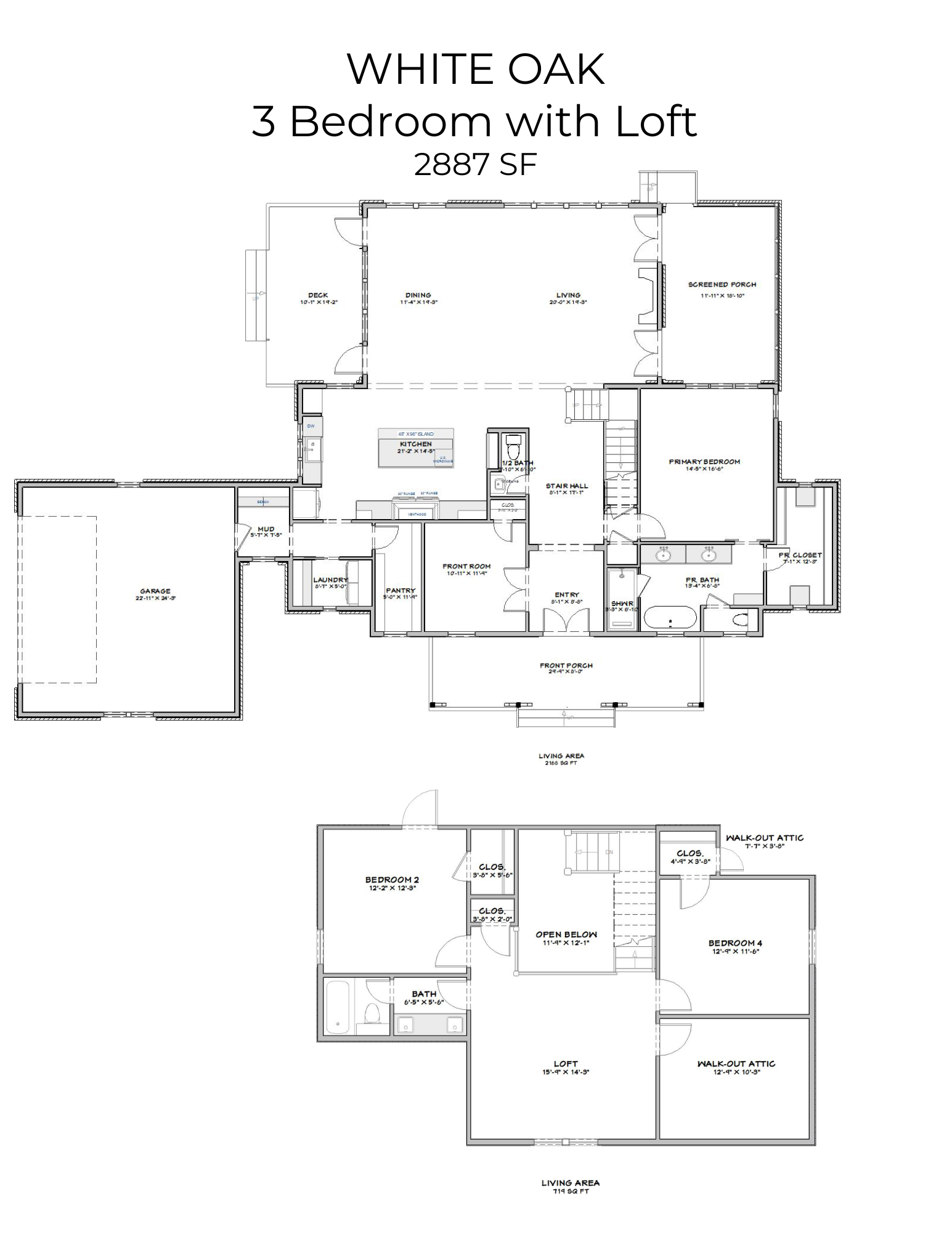

Variations:

3.5 baths



PLAN DETAILS

SQUARE FOOTAGE

Total Heated Area: 2886 SF

1st floor: 2174 SF

2nd floor: 712 SF



DIMENSIONS

width: 89′-5″

top ridge height: 33′-8″

depth: 56′-11″



FOUNDATION

slab

other types available as a modification



CEILING HEIGHTS

1st floor: 10′-0″

2nd floor: 9′-0″



ROOF DETAILS

primary pitch: 10/12

front porch 3/12

stick framing



WALL FRAMING

2×6 exterior walls

2×4 interior walls





All orders fulfilled Monday-Friday.  A complete set of working drawings delivered in a digital format. Typical delivery timeline is 1-2 business days but orders with options may result in a delay.

IMPORTANT NOTE: If your order includes modifications, this delivery timeline is not applicable.



MODIFICATIONS: Considering Modifications? READ THIS, please.
Select this option to let us know that you'd like us to make modifications to this plan for you. Please see note/link above about MODIFICATIONS. This is a deposit that will be deducted from your final modifications invoice.
Product total
Options total
Grand total

Description

Terms of Purchase

Building Code

Due to the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, a design professional or licensed engineer can assist in bringing the plans up to your local building code.

Engineering

All foundations should be designed by a local Structural Engineer for the specific local and site conditions.



By purchasing this plan you acknowledge that you understand and agree to the following:

  • I have confirmed that the plan will work on my site, taking setbacks, easements or any other building restrictions into consideration.
  • I understand that I may only use this Construction Set in accordance with the license agreement I choose.
  • I understand this Construction Set is protected by copyright. The use of these plans and specifications is restricted to the original site for which they were prepared.  Re-use, reproduction or publication by any method in whole or in part is prohibited, unless authorized by Jessica Starr.  Ownership of the design, plans and specifications is solely with Jessica Starr. Plans may not be shown in whole or part on the internet by anyone other than Jessica Starr and Old Barn Design.
