PGC-RL-2543

$1,695$2,395

About the PGC-RL-2543:

  • This one-story floor plan is similar to Pecan Grove. It takes the scale of the Living, Dining, and Kitchen in the Century

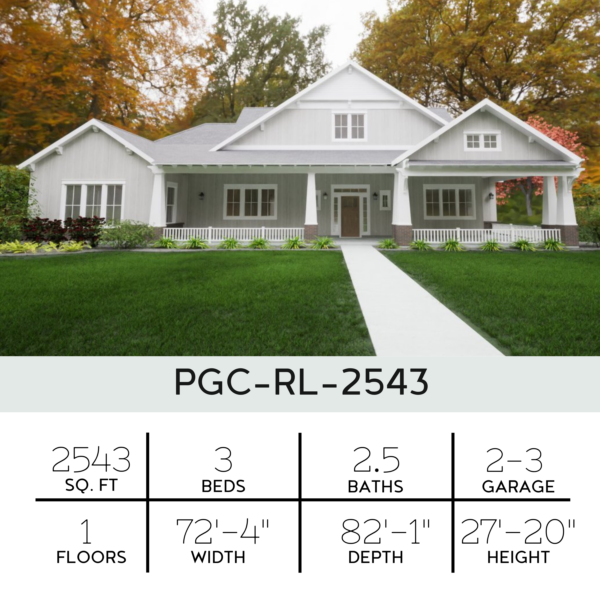

  • This 2543 sq ft Craftsman style home has a charming and classic façade with a gracious front porch.
  • This beautiful open floor plan home has 3 bedrooms, 2.5 baths.
  • The Living Room has a large cozy fireplace flanked by cabinets in iconic craftsman style.
  • This carefully designed kitchen boasts a large center island with seating for 4 and a huge set of windows over the sink. With numerous cabinets, a huge walk-through pantry, you’ll find the storage is abundant.
  • The Dining Area is a great place to gather the family for meals and conversation! Open to the Living Room and Kitchen, it’s casual enough for everyday use and large enough and pretty enough for more elegant dinner parties!
  • The inviting Primary Suite is the perfect place to find tranquility after a long day! It has lots of windows and the option for vaulted ceilings.
  • ·On the other side of the home, you’ll find 2 additional bedrooms, both with large closets and a spacious Jack and Jill bathroom set up for efficiency.



Variations: Reduced Porches  |  Upstairs Bedroom/Bath



What is included in these plans…and other FAQs



Printable flier



PLAN DETAILS

SQUARE FOOTAGE

Total Heated Area: 2543 SF

1st floor: 2543 SF



DIMENSIONS

width: 72′-4″

top ridge height: 30′-10″

depth: 82′-1″



FOUNDATION

slab

other types available as a modification



CEILING HEIGHTS

1st floor: 10′-0″

2nd floor: 9′-0″



ROOF DETAILS

primary pitch: 10/12

secondary pitch: 8/12, 4/12

stick framing



WALL FRAMING

2×4 interior

2×6 exterior







All orders fulfilled Monday-Friday.  A complete set of working drawings delivered in a digital format. Typical delivery timeline is 1-2 business days but orders with options may result in a delay.

IMPORTANT NOTE: If your order includes modifications, this delivery timeline is not applicable.



MODIFICATIONS: Considering Modifications? READ THIS, please.
Select this option to let us know that you'd like us to make modifications to this plan for you. Please see note/link above about MODIFICATIONS. This is a deposit that will be deducted from your final modifications invoice.
Product total
Options total
Grand total

Description

Terms of Purchase

Building Code

Due to the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, a design professional or licensed engineer can assist in bringing the plans up to your local building code.

Engineering

All foundations should be designed by a local Structural Engineer for the specific local and site conditions.



By purchasing this plan you acknowledge that you understand and agree to the following:

  • I have confirmed that the plan will work on my site, taking setbacks, easements or any other building restrictions into consideration.
  • I understand that I may only use this Construction Set in accordance with the license agreement I choose.
  • I understand this Construction Set is protected by copyright. The use of these plans and specifications is restricted to the original site for which they were prepared.  Re-use, reproduction or publication by any method in whole or in part is prohibited, unless authorized by Jessica Starr.  Ownership of the design, plans and specifications is solely with Jessica Starr. Plans may not be shown in whole or part on the internet by anyone other than Jessica Starr and Old Barn Design.

Additional information

Plan Set Options

PDF – Single Build, PDF – Unlimited Build, CAD + PDF Single Build, CAD + PDF Unlimited Build
